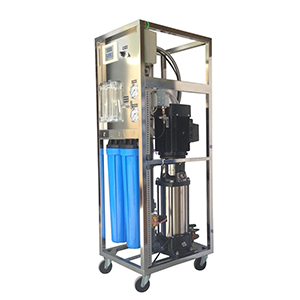

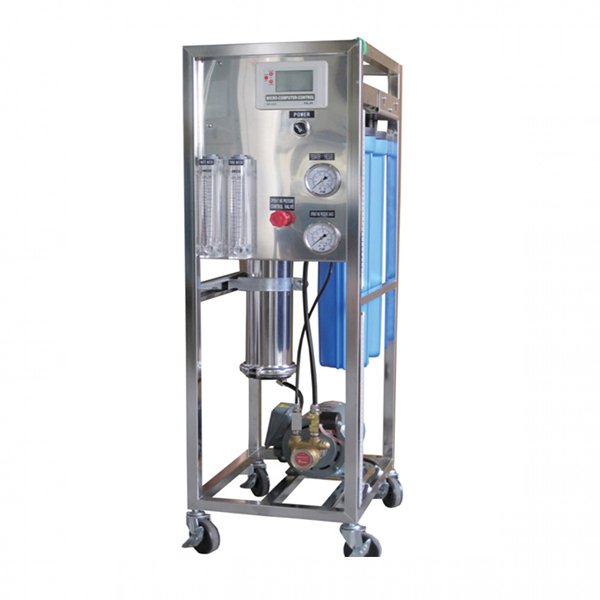

JM Commercial RO system

Commercial RO System is a high-performance water purification solution engineered to deliver large volumes of purified water for light industrial, institutional, and commercial applications. Using advanced reverse osmosis technology, it efficiently removes up to 99% of dissolved salts, minerals, heavy metals, and contaminants from feed water.

Available in 800 GPD, 1500 GPD, and 3000 GPD capacities, these systems are ideal for restaurants, hotels, clinics, offices, and small manufacturing units that require a reliable supply of high-quality water.

Key Features:

Flow Capacities:

• 800 GPD (~125 L/hr)
• 1500 GPD (~236 L/hr)
• 3000 GPD (~473 L/hr)

Filtration Stages: 4–6 stage configuration

• Sediment Filter → Activated Carbon → RO Membrane → Post Filter
• Optional: UV Sterilizer, Mineral Filter, Antiscalant Dosing

Membrane Type: 4040/4021 or 8040 (depending on model)

Pump: High-pressure booster pump (stainless steel)

Frame: Powder-coated steel or SS skid-mounted structure

Operating Pressure: 100–200 psi (depending on membrane)

Control System: Manual or semi-automatic with TDS monitor, pressure gauges, and flow meters

Recovery Rate: Up to 50–70% (depends on feed water quality)

Standard Features Include:

• High-rejection RO membranes (Vontron, Filmtec, LG, etc.)
• SS304/316 high-pressure pump (in larger models)
• Pre-filter housings with easy-change cartridges
• Integrated flush system for membrane cleaning
• TDS meter and pressure gauge for monitoring
• Built-in safety shut-off for low/high pressure

Applications:

• Restaurants and hotels
• Commercial kitchens and bakeries
• Clinics and medical facilities
• Schools, offices, and mosques
• Car wash and laboratory use
• Small-scale industrial water needs
