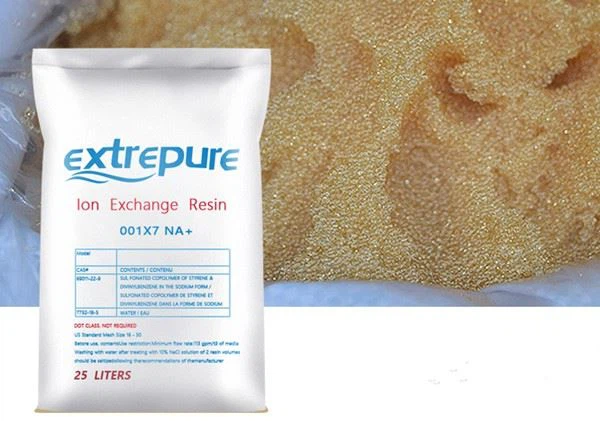

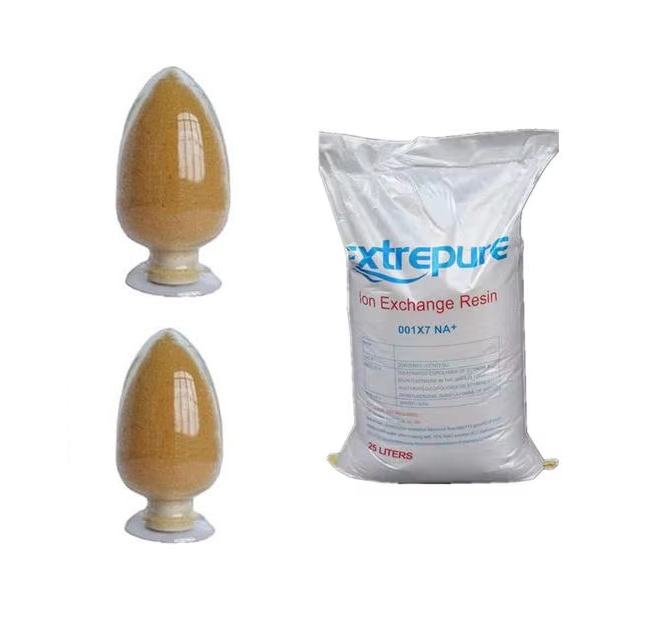

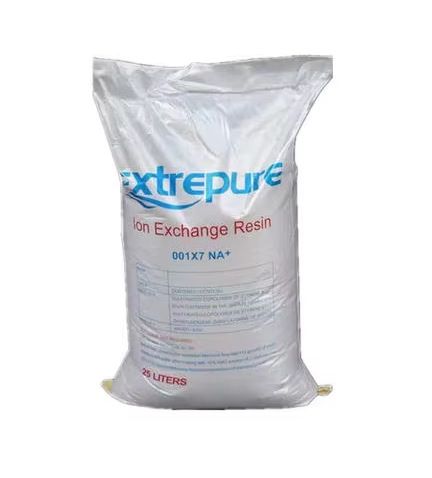

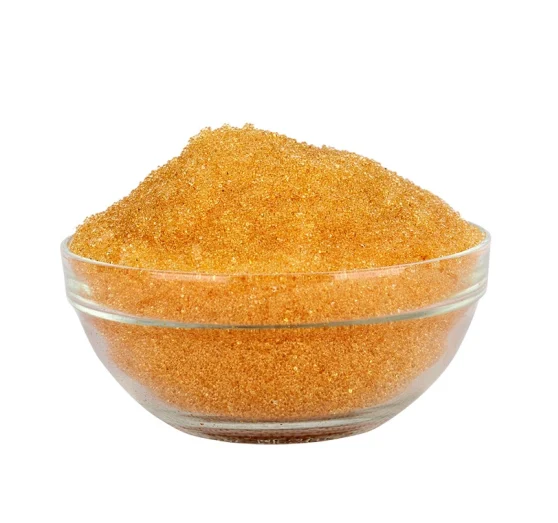

Softener Cation Resin

Cation exchange resin, commonly known as softener resin, is a synthetic polymer material used in water softening systems to remove hardness-causing minerals such as calcium (Ca²⁺) and magnesium (Mg²⁺) from water. These minerals are responsible for scale formation in pipes, water heaters, and appliances.

Ion Exchange Process

• The resin is charged with sodium ions (Na⁺) or potassium ions (K⁺).
• When hard water passes through the resin bed, the calcium (Ca²⁺) and magnesium (Mg²⁺) ions in the water are attracted to the resin.
• The resin releases sodium ions in exchange for the hardness ions, effectively softening the water.
• Over time, the resin becomes saturated with calcium and magnesium and must be regenerated with a salt solution (usually NaCl) to restore its softening capacity.

Advantages

• Effective hardness removal (Ca²⁺ and Mg²⁺)
• Long service life with proper maintenance
• Simple regeneration using common salt (NaCl)
• Reduces scale formation in pipes, heaters, and appliances

Applications

• Residential water softeners
• Commercial & industrial softening systems
• Boiler feed water treatment
• Pretreatment for reverse osmosis (RO) systems
• Food and beverage processing
