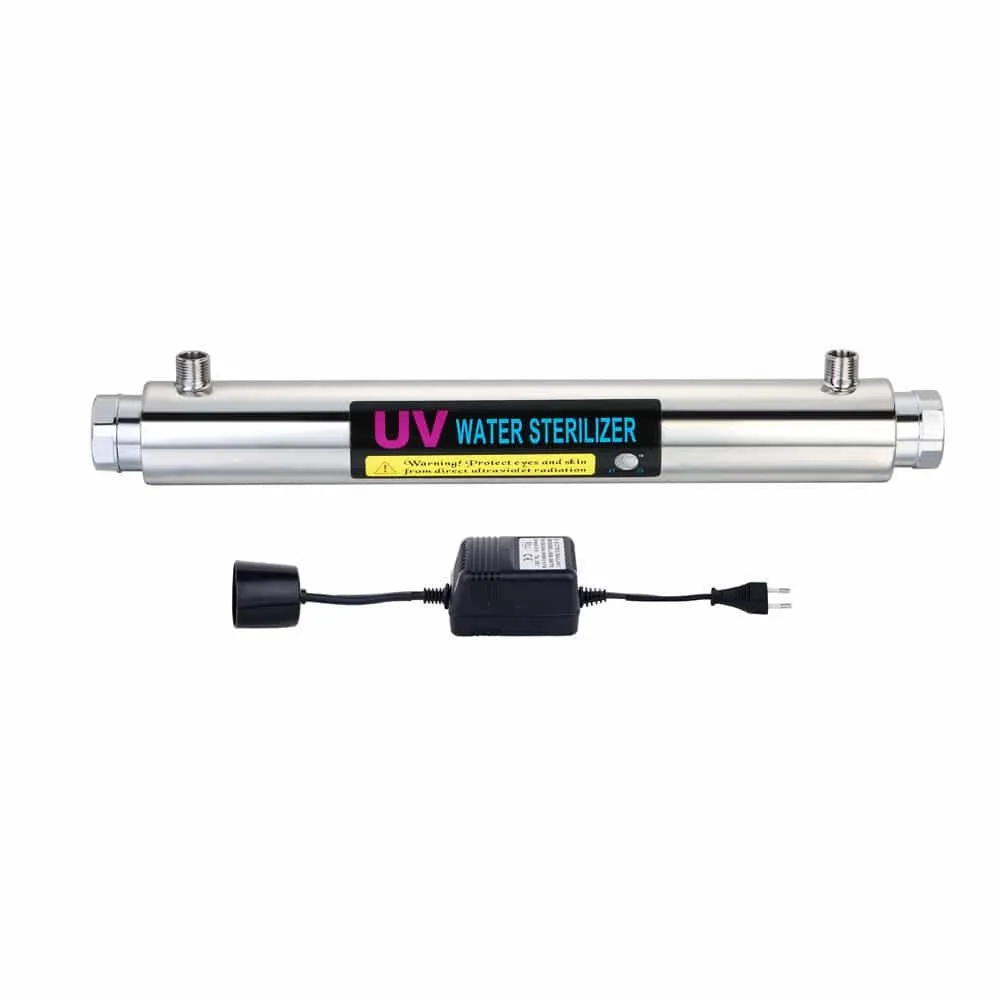

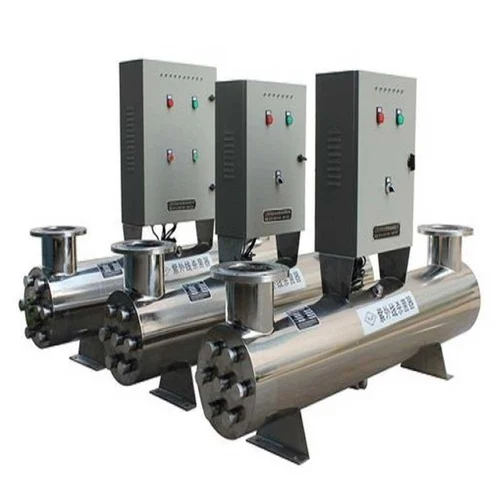

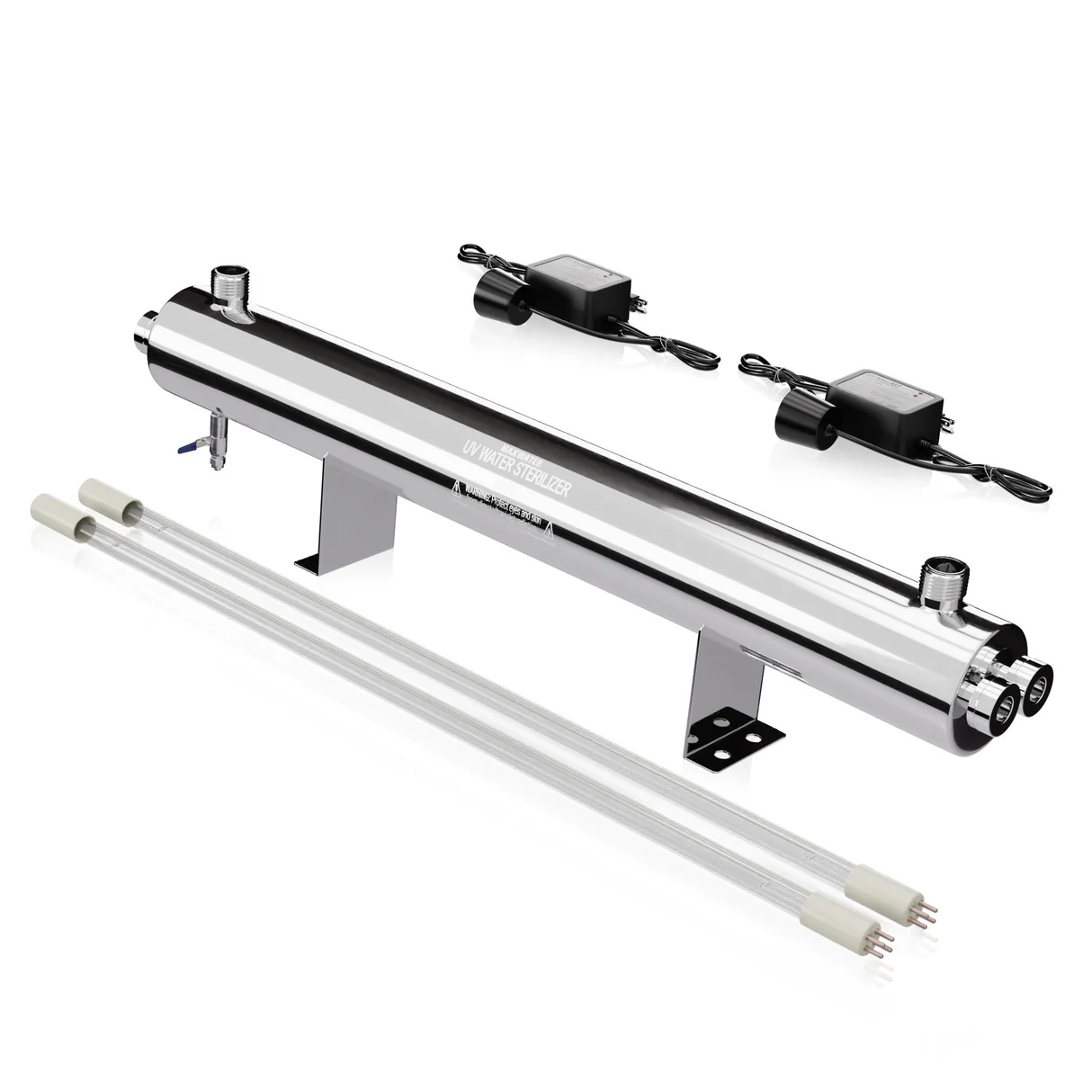

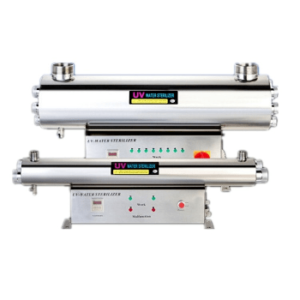

UV sterilizer

UV sterilizer for water treatment is a disinfection device that uses ultraviolet (UV-C) light to effectively destroy harmful microorganisms in water without the use of chemicals. It is widely used in residential, commercial, and industrial water systems to ensure safe, clean, and microbiologically purified water.

How It Works

UV sterilizers emit UV-C light (wavelength ~254 nanometers), which penetrates the cell walls of microorganisms and disrupts their DNA or RNA. This process prevents replication and renders the organisms harmless, achieving up to 99.99% sterilization efficiency.

Main Components

1. UV-C Lamp – High-output germicidal lamp designed for maximum disinfection efficiency.
2. Quartz Sleeve – Transparent tube that shields the lamp while allowing UV light to pass through the water.
3. Reactor Chamber – Stainless steel or polymer housing that directs water flow and optimizes exposure.
4. Electronic Ballast/Controller – Powers the lamp and may include indicators for lamp status, failure alarms, and countdown timers.
5. Flow Ports – Inlet and outlet for integration into water lines.

Features

• Disinfects up to 99.99% of bacteria, viruses, and protozoa
• Chemical-free process – no chlorine, no harmful by-products
• Continuous, real-time water disinfection
• Automatic shut-off or alarms (in advanced models)
• Long-lasting UV lamp (typically 9,000–12,000 hours)
• Low maintenance – only periodic lamp and quartz sleeve cleaning/replacement required

Applications

• Residential: Whole-house systems, point-of-entry (POE) and point-of-use (POU) UV disinfection for well or municipal water
• Commercial: Food processing, beverage bottling, hospitality, and laboratories
• Industrial: Pharmaceutical manufacturing, wastewater treatment, electronics, and cooling towers
• Aquaculture & Agriculture: Pathogen control in irrigation and fish farming systems
• RO/DI Systems: Post-filtration microbial control

Benefits of UV Sterilization in Water Treatment

• Eliminates waterborne pathogens without altering water chemistry
• Safe for drinking, food-grade, and sensitive applications
• No residual taste, odor, or corrosiveness
• Environmentally friendly and sustainable
• Easy integration into existing filtration systems
