FRP Tank

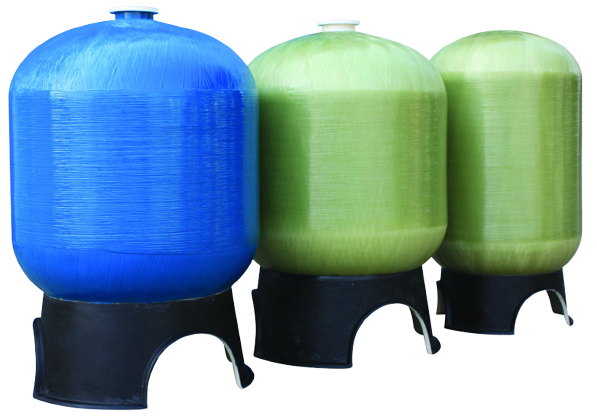

JM-S FRP TANK (commercial)

Description

• Top 4″ thread, 6″flange Top & Bottom open type

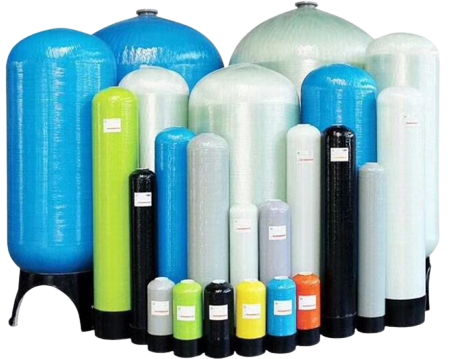

• Sizes: 18″ dia to 72″ dia (4″ & 6″ Flange top bottom opening)
• Function : pressure vessel

Structure & Materials

• Liner Material: PE(polyethylene), blow molding, seamless without leakage
• Outer Winding: High performance Fiber Glass and Epoxy Resin;
• Base Materials: PP

Application conditions

• Working pressure: <150psi/10.5bar
• Working temperature: 1-49oC
• Max. vacuum: 127mm Hg
• Lowest environment temperature: -2oC

Design parameter

• Burst pressure: 600psi/42bar;
• Fatigue cycle: 100,000
